| Part No. | Description | Qty |
| H7020 | 46 holes full ring Ø160mm | 4 |
| H7136 | Distractor | 1 |
| H7642 | Cardan hinge M6 * 25mm | 2 |
| H7140 | Threaded rod 60mm | 2 |
| H7158 | Threaded rod 100mm | 2 |
| H7144 | Threaded rod 150mm | 8 |
| H7659 | 1 hole bolt connection piece | 2 |
| H7660 | 2 holes bolt connection piece | 2 |
| H7661 | 3 holes bolt connection piece | 2 |
| H7135 | Wire fixation bolt 1.0 - 2.0mm | 10 |
| H7647 | Wire fixing bolt 2.0mm | 10 |

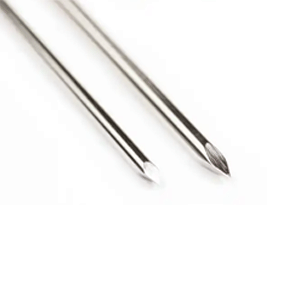

| HLO20350 | K-wire Ø2.0 * 350mm | 10 |
| H7011-002 | M6 nut | 50 |
| H7012-003 | M6 flat washer | 50 |
| Tools | ||
| G70001 | Open wrench 10 * 10mm | 2 |
| G11000 | T-wrench Ø6 | 1 |
| G18001 | Wire tensioner Ø0.8 - 1.2 | 1 |
| G18004 | K-wire scissors Ø1.0 - 2.5 | 1 |
| G21009 | K-wire bender 2.0 - 2.5mm | 1 |
| G12003 | Pin cover Ø2.0 * 2mm | 2 |
* Select more accessories based on actual cases.

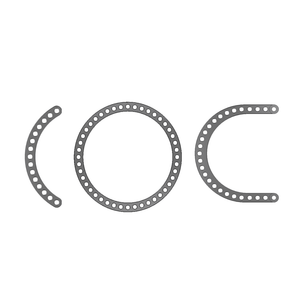

| Part No. | Description | Specification | Material | |

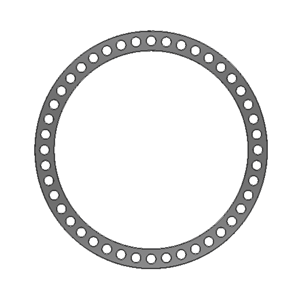

| H7017 | 38 holes full ring | Ø130mm | Aluminum alloy |
| H7018 | 42 holes full ring | Ø140mm | ||
| H7019 | 44 holes full ring | Ø150mm | ||
| H7020 | 46 holes full ring | Ø160mm | ||
| H7021 | 48 holes full ring | Ø170mm | ||
| H7022 | 50 holes full ring | Ø180mm | ||

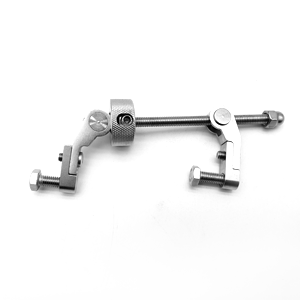

| H7136 | Distractor | M6 * 150mm | Stainless steel |
| H7642 | Cardan hinge | M6 * 25mm | Stainless steel |
| H7151 | Threaded rod | 50mm | Stainless steel |
| H7140 | 60mm | |||
| H7141 | 80mm | |||
| H7158 | 100mm | |||

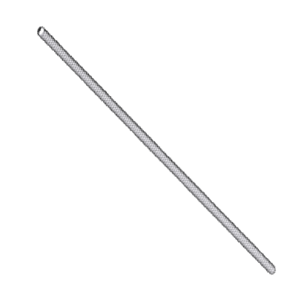

| H7142 | 110mm | |||
| H7143 | 120mm | |||
| H7162 | 140mm | |||
| H7144 | 150mm | |||
| H7159 | 160mm | |||
| H7145 | 180mm | |||
| H7146 | 200mm | |||
| H7147 | 250mm | |||
| H7148 | 300mm | |||
| H7149 | 350mm | |||
| H7150 | 400mm | |||
| H7155 | 450mm | |||
| H7157 | 540mm | |||
| H7161 | 600mm | |||
| H7659 | Bolt connection piece | 1 hole | Stainless steel |
| H7660 | 2 holes | |||
| H7661 | 3holes | |||
| H7662 | 4 holes | |||

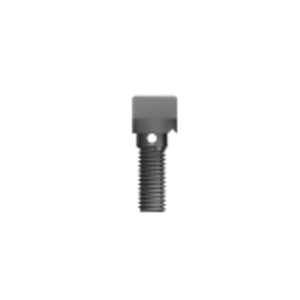

| H7135 | Wire fixation bolt | Ø1.0 - 2.0mm | Stainless steel |

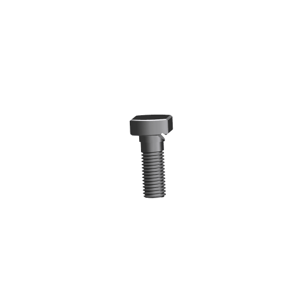

| H7647 | Wire fixing bolt | Ø2.0 | Stainless steel |
| H7648 | Ø2.5 | |||

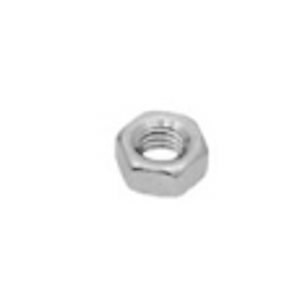

| H7011-002 | Nut | M6 | Stainless steel |
| H7012-003 | Flat washer | M6 | Stainless steel |
